Start with the path to the internet
A home network map does not need to be a formal diagram. Its job is to answer a few useful questions: Which device connects to your internet service? Which device manages the home network? How do your phones, computers and other devices connect? A page of notes with boxes and lines is enough.

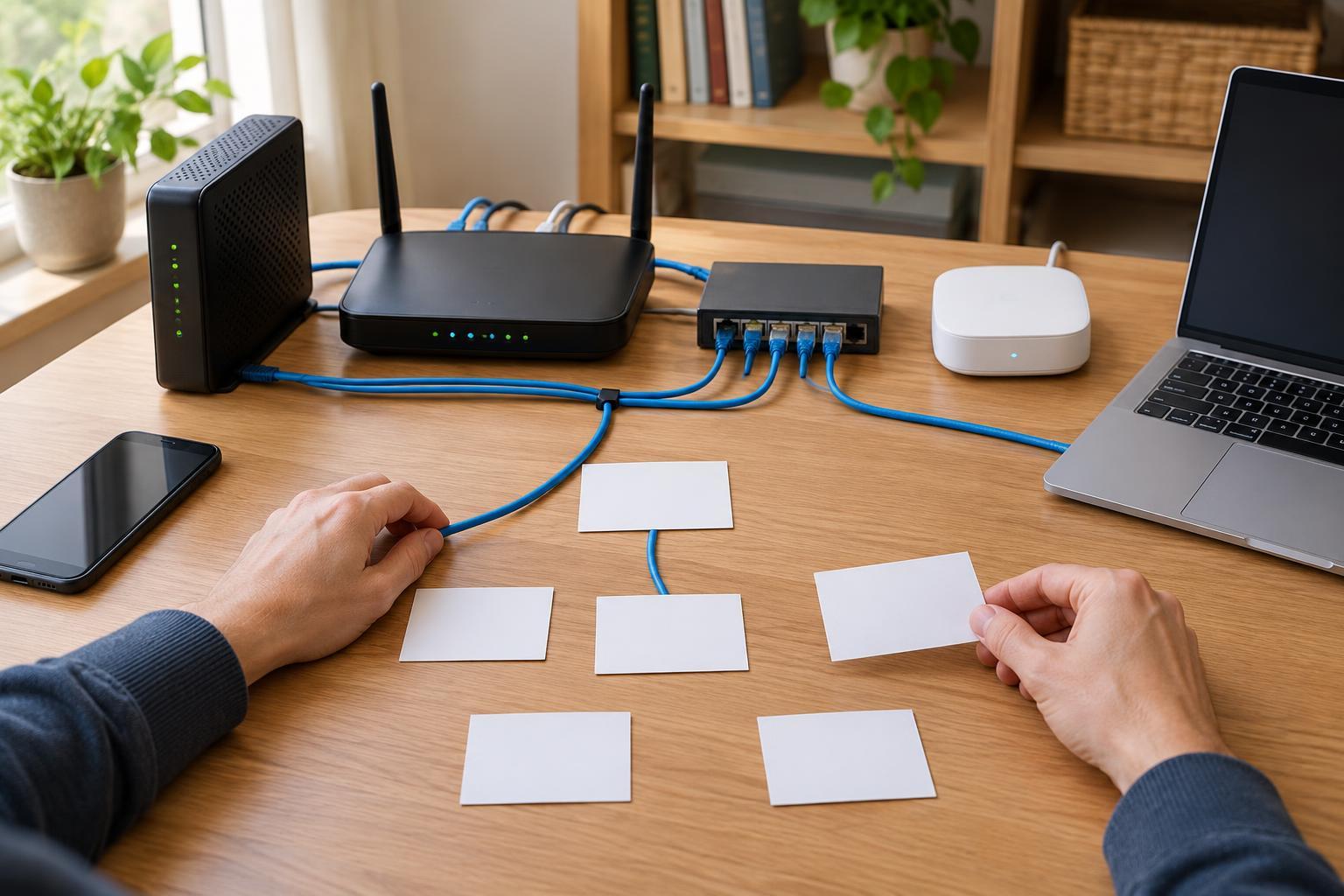

Begin at the point where service enters your home. Depending on the connection, this may be a modem, a fiber ONT or a gateway that combines several functions. Draw a line from that equipment to your main router if they are separate devices. Then add any Ethernet switches, Wi-Fi access points or mesh units. Label each connection as wired or wireless. If you are unsure what a box does, record its model name for now rather than guessing.
Add devices by connection, not just by room
Next, group the devices you use regularly under the equipment they connect to. A desktop plugged into a switch belongs on the wired side of your map; a laptop on Wi-Fi belongs under the network it joins. Include less obvious devices such as printers, TVs, cameras and smart-home hubs. You do not need to list every visiting phone, but noting categories such as “guest devices” can help.
A device’s physical location and network connection are not always the same thing. A mesh unit in the study might use Wi-Fi to reach the main router while a computer plugs into that unit with Ethernet. Show both parts of that path. Likewise, write down the names of your main and guest Wi-Fi networks if you use both. A network name tells you which network a device joins, but not necessarily which access point serves it at a given moment.
Record the settings that help you diagnose problems
For each piece of network equipment, record its location, model and role. Note which device provides router functions, including local address assignment, if you can identify it in the settings. You may also want to record the router’s local address and the address range it gives to devices. These details help when you need to find an equipment settings page or understand why a device cannot reach another one.
Keep the map useful without making it a collection of secrets. You can note where passwords are stored, but avoid writing Wi-Fi passwords, administrator passwords or recovery codes on a diagram that might be shared. If you record device addresses, remember that automatically assigned local addresses can change. A device name, connection type and location are often more durable identifiers.
Check your map with a few real connections
Before relying on the diagram, test a handful of paths. On a phone or laptop, check which Wi-Fi network it has joined. On a wired computer, trace its Ethernet cable to the wall socket, switch or router. If a cable disappears into a wall, label both ends only after you have confirmed where it goes. An unlabeled cable is better than a confidently mislabeled one.
You can also compare your notes with the router’s connected-device list, though the names shown there may be unfamiliar or out of date. Disconnecting a device briefly may help identify an entry, but avoid interrupting equipment that someone else is using. If the map and device list disagree, mark the item as uncertain and investigate later. The goal is a trustworthy working picture, not a perfect inventory in one sitting.
Use the map when something changes
When a connection fails, the map gives you a place to start. If only devices connected through one switch have trouble, inspect that switch and its link to the router. If both wired and wireless devices lose internet access but can still reach local devices, look toward the router’s connection to the internet equipment. These patterns are clues, not proof, but they can keep you from changing unrelated settings.
Update the map when you add a mesh unit, move a cable or create a guest network. A date beside each change can help you connect a new symptom with a recent adjustment without implying that the adjustment caused it. Keep the diagram somewhere household members can find it, while storing sensitive credentials separately. A modest map that stays current is more valuable than an elaborate one that no longer reflects your network.
